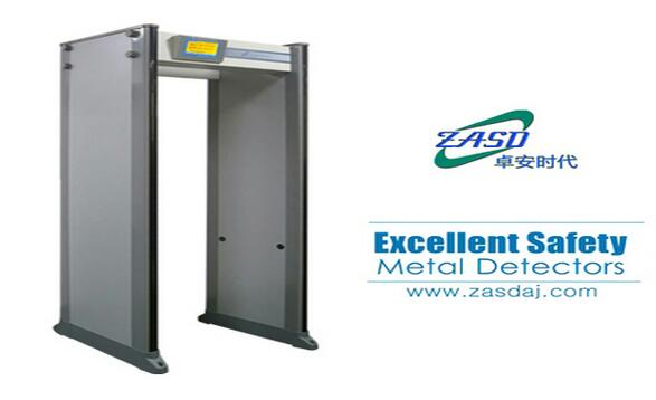

Ultra - high sensitivity metal detection security doors

Ultra - high sensitivity metal detection security doors

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: guangzhou,HARBOR
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-07-12
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  shenzhen
  • Brand Name:  zhuoanshidai
  • Model Number:  ES8s

Supply ES8S channel metal detector door


Product Features:


1, multi-frequency work strong anti-interference


2, digital pulse technology and stable performance


3, modular design that pull plug


4, a key to restore factory settings


5, timer switch machine


6, power on


7, two kinds of working mode (1) infrared working mode (2) automatic mode


8, the visual sensitivity of debugging



9, boot self-test, environmental adaptation.


10, seven-inch color display


11, real-time display background interference


Functional Description:


Display: Chinese


Power-on self-test: the system failure automatically displays the fault content


Alarm settings: 1, alarm sound time setting (0.5-9S)


          2, the alarm LED time setting (0.5-9S)


          3, the alarm volume settings (0-20)


             "20 levels of continuous sound adjustment, the sound section obvious, set to 0, said off sound"


          4, alarm sound tone settings (0-F level)


              "0-7 for the intermittent alarm tone, 8-F for the continuous alarm tone, security door to achieve different alarm sounds"


Alarm mode: can be divided into single-zone / multi-zone "at the same time the alarm can be achieved only alarm metal area or all the metal alarm area at the same time"


Sensitivity: fine-tuning sensitivity, the figure of the area / around the overall sensitivity adjustment, convenient and quick


Detection Location: can be divided into (8 zones), factory set to (8 zones), vibration protection: adjustable (-99-99) to prevent vibration interference caused by false alarms


Through the speed: *** 1-100 people / minute down from the regulation, custom adjustment detection speed


Counting function: intelligent traffic and alarm counting function, can record 20,000 times and automatically save


Calendar: can display the year, month, day, hours, minutes


Timing switch: the system can time switch machine


Management of encryption: to prevent illegal modification of data or misuse of the product lead to abnormal work


Application: Customizable parameters


Technical Parameters:


Power Supply: 15VDC


Power: Ultra low power consumption


Dimensions: 2230mm (high) X830mm (width) X660mm (deep)


Channel size: 2000mm (height) X750mm (width) X600mm (depth)


Machine weight: about 60kg


Working environment: -28 ℃ - 47 ℃


Adapt to the place:

1. Applicable to the government law enforcement departments: including the Public Security Bureau, the Procuratorate, the court court, prisons, labor camps, detention centers, drug addiction and other venues of prohibited metal objects safety inspection.

2. Applicable to public places: including stadiums, entertainment venues (discos, dance halls, etc.), airports, railway stations, bus stations, ports, customs, banks, exhibition halls, museums, banks, oil depots, power stations and other Safety inspection of entrance of public places.

3. Applicable to production enterprises: including electronics (such as: chips, memory, circuit boards, hard drives, mobile phones, MP3, translator, voice recorder, electronic devices, etc.), wire and cable, electrical appliances, gold and silver jewelry, cigarettes, (Copper, aluminum, etc.) And its processing and other related industries or all kinds of important enterprises of the security check - up, the production of metal products,


  • Place of Origin:  shenzhen
  • Brand Name:  zhuoanshidai
  • Model Number:  ES8s
